EE Test System

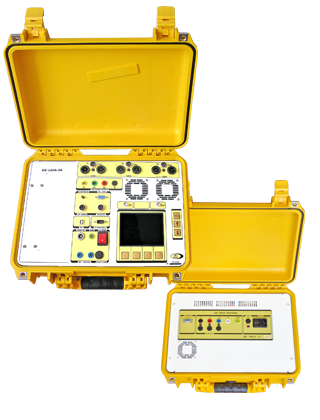

EE -60A-3S THREE-PHASE ANALYZING STANDARD CLASS 0.04 with INTEGRATED THREE-PHASE CURRENT SOURCE TO 60A;

EE- 500V-3 THREE-PHASE VOLTAGE GENERATOR TO 500Vac

True three-phase analyzing standard, 0.04% accuracy class;
Generation of three-phase currents with range 10mA ... 60A;
In service and ANSI testing of energy meters with FL, LL and PF;
The main unit EE-60A-3S is able to work with or without the voltage generator;
Error tests (kWh, kVArh, kVAh), register test and maximum demand test;

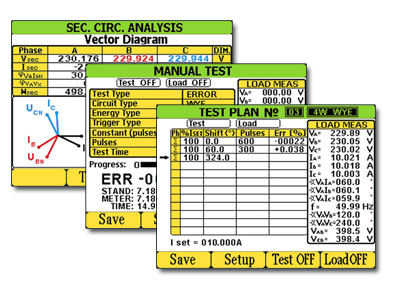

Manual Tests or automatic testing with Test Plans;
The phantom load can generate harmonics (up to 19th harmonic) without the need of a PC;
The EE Test System can be controlled from a PC, using EE Software (Windows XP, 7, 8, 10);
EE Software is also used to download the Test Results from EE Test System. The results are saved in MySQL Data Base, can be searched, viewed as Test Reports and printed.
